Mechanism, Hood Release, Replacing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Mechanism, hood release, replacing

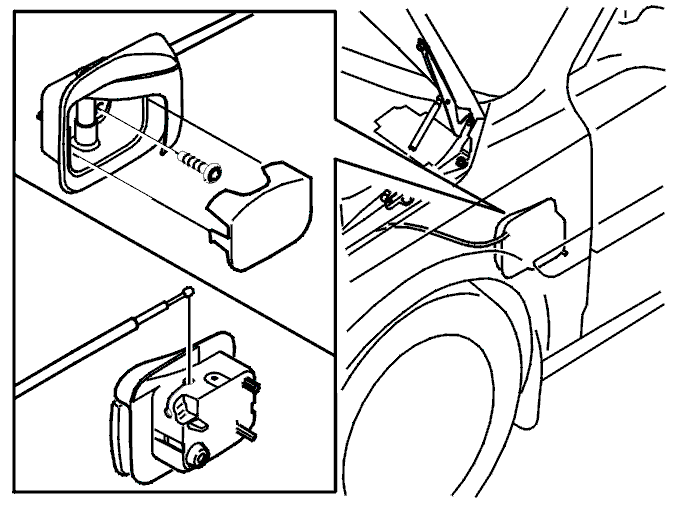

Fig 1: Identifying Cover And Screw For Hood Release Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the cover
the screw.

Thread the control through the hole in the floor carpet.

Pull the handle to the open position.

Unhook the mechanical cable.

Install:

In reverse order.
