Hood Catch, Replacing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Remove:

turn signal lamp. See Turn signal lamps, replacing
the headlamps. See Headlamps
the front section. See Front end

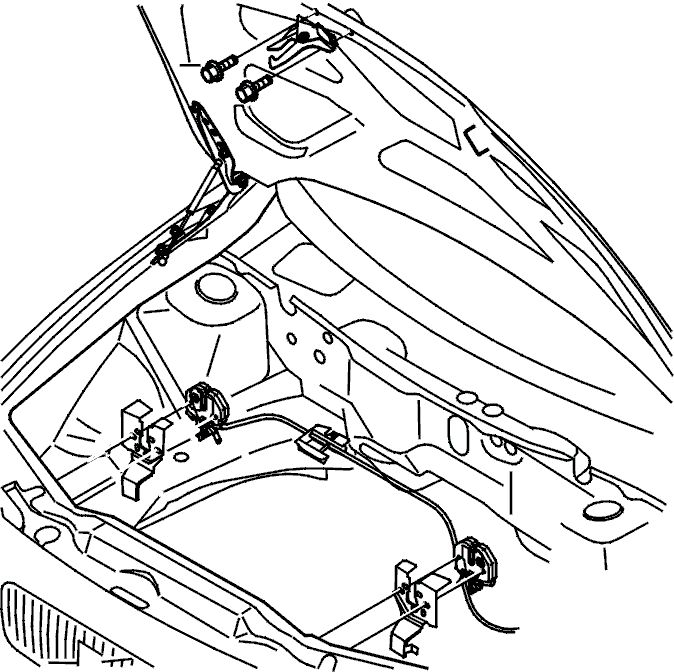

Fig 1: Removing Headlamp, Front Section, Screws/Locks, And Unhooking Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

the two screws / locks.

Unhook the cable.

Replace the catch.

Install:

In reverse order.

HINT: Do not tighten the bolts before the hood is closed.
