Hinges, Hood, Replacing: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

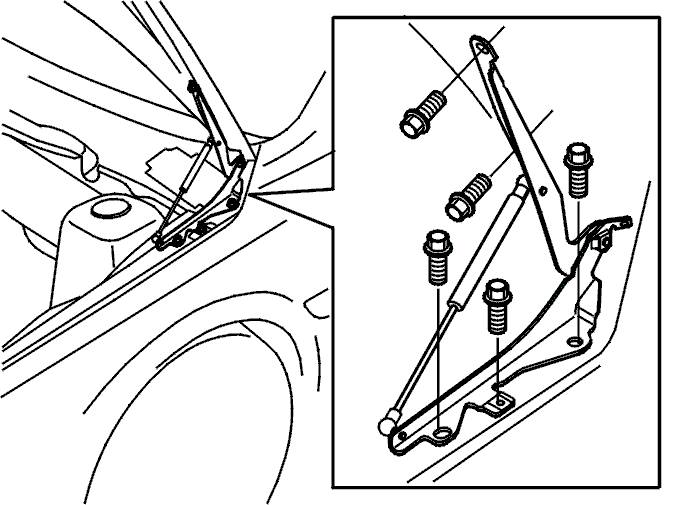

The hood hinge is fastened to the hood with two screws and to the bodywork by three screws.
The hood is opened using a gas strut.
Remove the retaining clips from gas strut.
Remove the gas strut.
Unscrew the screws by the hood.
Remove the hood.
Unscrew the screws in the bodywork.
Remove the hood hinge.
