Removing the front timing cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Since the graphics in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the graphics is always correct.

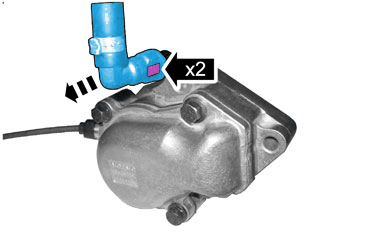

Fig 1: Identifying Thermostat Housing Locks

Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen hose thermostat housing-expansion tank from the thermostat housing by pressing in the locks, then press in the connection against the thermostat housing, then pull out the connection.

Fig 2: Expansion Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Make sure that the belt cover has cleared the nipple on the thermostat housing before the cover is pulled up, to prevent damaging the nipple.

Remove:

the air duct, cover, surround and control module box
the hose between the thermostat housing and the expansion tank
the front timing belt cover.
