Installing the front timing cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

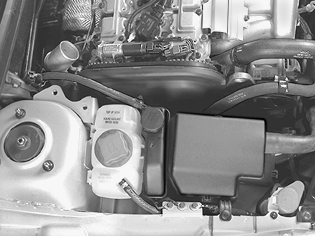

Fig 1: Front Timing Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Make sure that the belt cover is in position before the cover is pressed in against the rear timing casing, to prevent damage to the nipple on the thermostat housing.

Install:

the front timing belt cover
the hose between the thermostat housing and the expansion tank
the surround, cover and air ducts for the control module box.
