Pen holder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Removing the pen holder

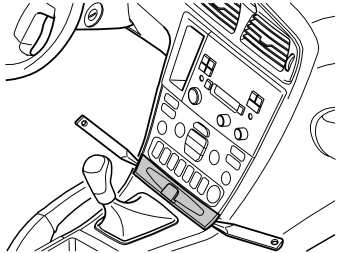

Fig 1: Identifying Weatherstrip Tools Inserted Between Dashboard Panel & Short Side Of Pen Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unclip both sides using weatherstrip tools.

Carefully insert the weatherstrip tools between the dashboard panel and the short side of the pen holder.

NOTE: Use 2 weatherstrip tools so as not to mark the edge of the dashboard.

Installing the pen holder

Press the pen holder into place.

Check that the holder clips into place properly.
