Installing steering shaft's universal joint on lower steering shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

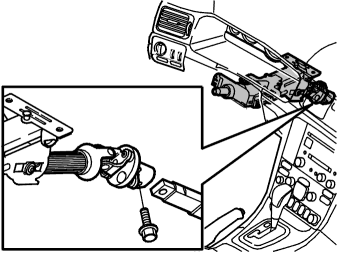

Fig 1: Identifying Screw For Lower Steering Shaft Attachment In Universal Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the steering shaft on lower steering shaft.

Set the front wheels straight ahead.

Install the upper steering shaft's universal joint on the lower steering shaft.

Install a new screw and tighten with 30 Nm.

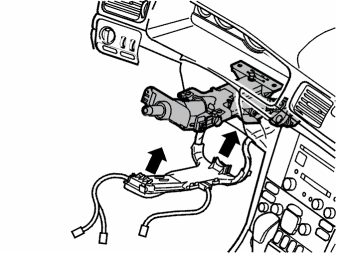

Fig 2: Identifying Steering Column Cable Casing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the cable casing on the steering column.
