Installing cable for key interlock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Applies to cars with automatic transmission.

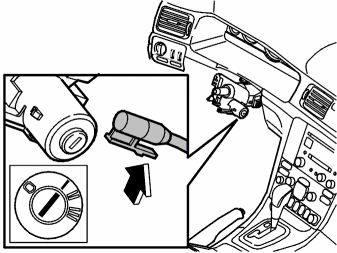

Fig 1: Identifying Key Interlock Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Set the gear selector lever to P position.

Move the ignition key to position I.

Press the cable into the ignition switch and feel to see that it sits correctly.

Remove the ignition key and check that the gear selector lever is blocked in P position.
