Damper motor, defroster, replacing: Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

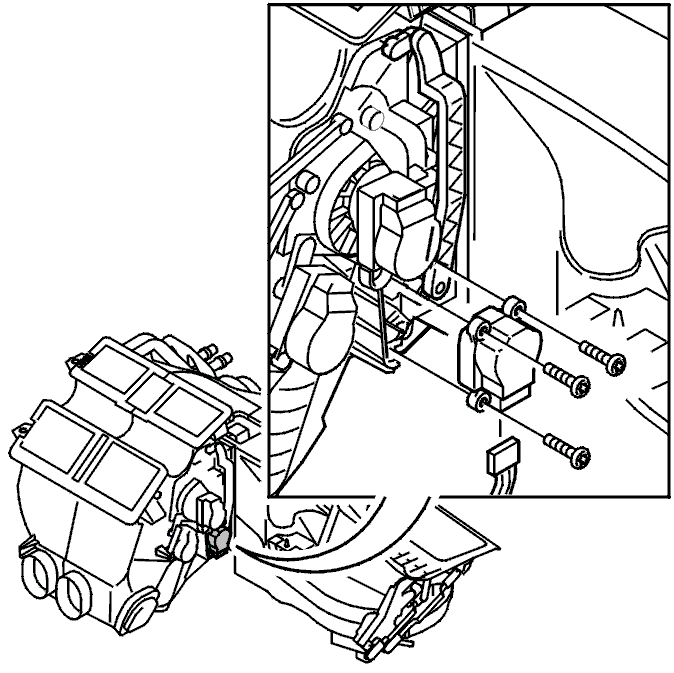

- Position the motor
- Turn the shaft on the heater unit so that the motor can be installed
- Position the motor
- Install the screws for the motor
- Install the switch.
Left-hand drive
- Install the glove compartment. See Glove compartment, replacing
Right-hand drive
- Install the soundproofing panel. See Soundproofing panel, replacing
- Carry out self-adjustment of the damper motor end positions. This is carried out via VIDA communication.
