Blower fan motor/power unit, replacing: Preparations: Remove

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

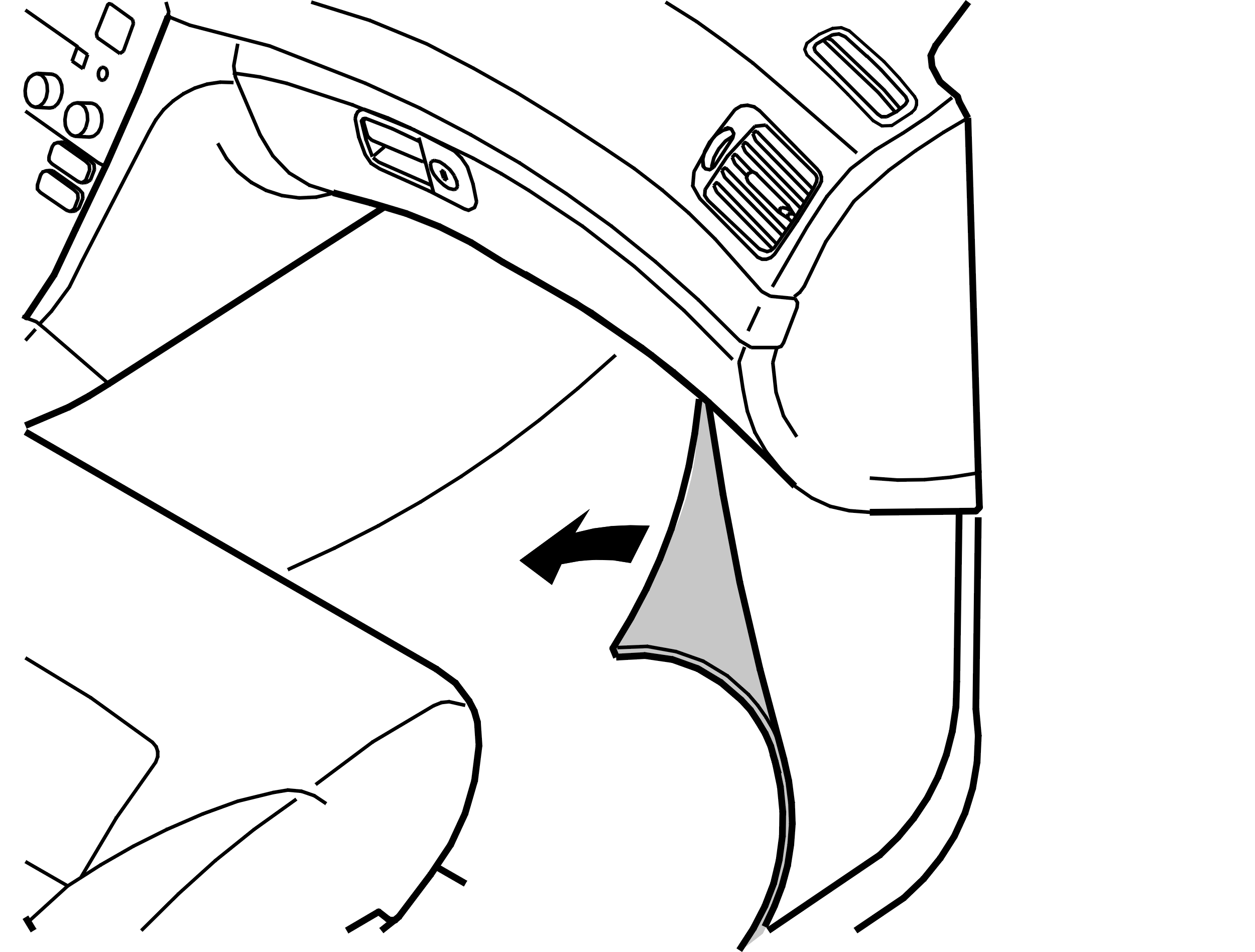

Fig 1: Detaching Floor Carpet At Front

Courtesy of VOLVO CARS OF NORTH AMERICA.

the sill trim panel. See The front sill trim panel
the soundproofing panel on the passenger side. See Soundproofing panel, replacing
the side panel on the center console. See Center console components
the glove compartment. See Glove compartment, replacing
any mounting hooks for child seats.

Detach the drain hoses from the motor and the filter housing. Move to one side.

Detach the floor carpet at the front and fold it back.
