Blower fan motor passenger compartment temperature sensor, replacing: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The information below applies to cars manufactured up to week 48 2001 inclusive. Information for cars manufactured from week 49 2001 inclusive. See Blower fan motor passenger compartment temperature sensor, replacing .

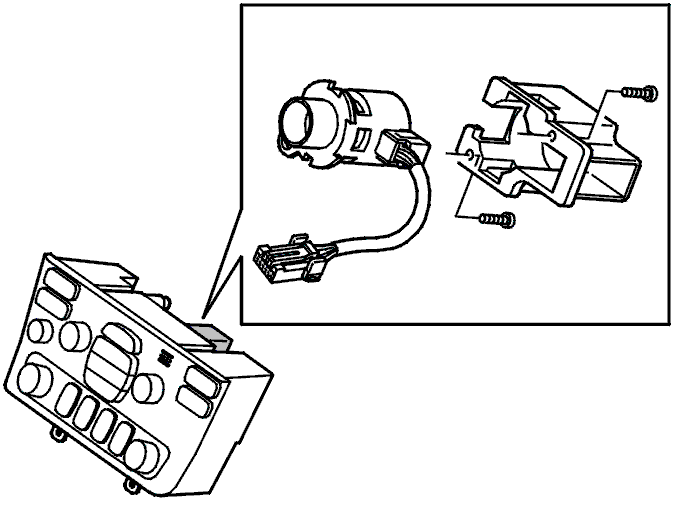

Fig 1: Identifying Dashboard Environment Panel & Climate Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the dashboard environment panel. See Dashboard environment panel (including climate control module (CCM)), replacing
the connector
the 2 screws
the cover and the motor.
