Work in the engine compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Always use new O-rings lubricated with compressor oil.

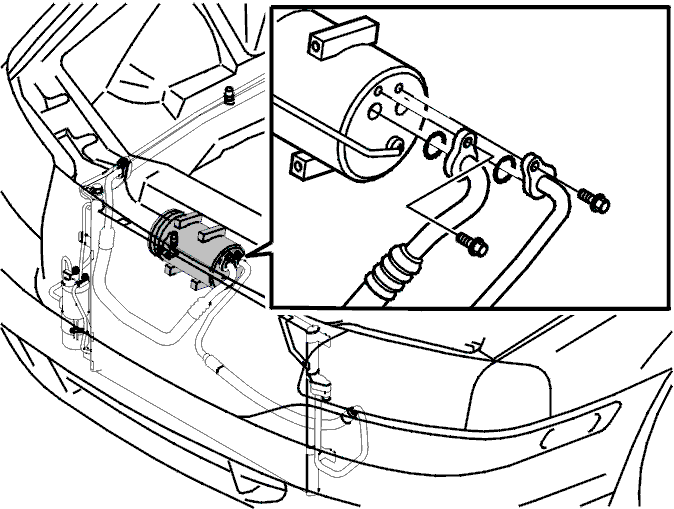

Fig 1: Identifying Pipe And Hose Between Compressor And Condenser

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the pipe and hose connections on the compressor
Tighten to 25 Nm .

Fig 2: Cooler Unit Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Thread the screws on to the upper mountings on the air conditioning aggregate
Tighten to 10 Nm .

Install the hose clamp and the charge air pipe and hose on the right-hand side (turbocharged engines only ).

Fig 3: Identifying Control Module Box Air Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the air pipe on the control module box.

Top up with oil. See Oil in the A/C system
Vacuum pump the system and leak test. See Refrigerant, draining
Fill the system and check for leaks. See Refrigerant, draining
Connect the battery negative lead. See Battery, replacing
