Condenser - Work in the engine compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative lead. See Battery, replacing
Drain the refrigerant from the system. See Refrigerant, draining

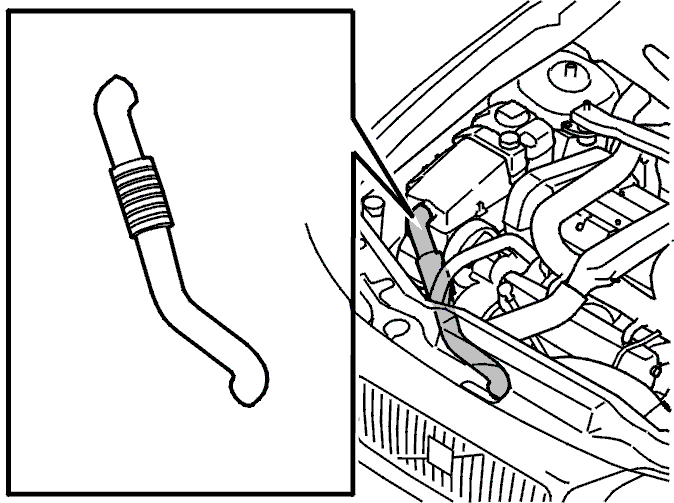

Fig 1: Identifying Control Module Box Air Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the air pipe from the control module box.

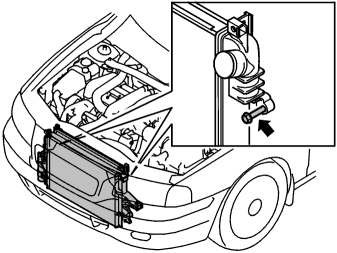

Fig 2: Air Conditioning Aggregate And Receiver Drier

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the upper screws holding the air conditioning aggregate together. Pull the aggregate outwards slightly.

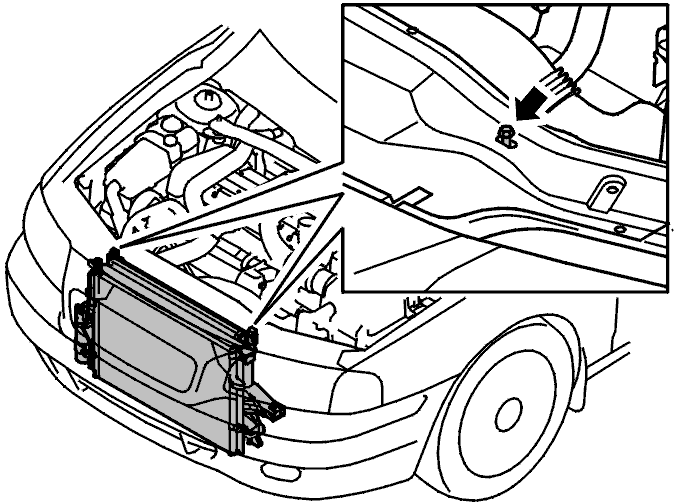

Fig 3: Cooler Unit Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws from the upper mountings on the air conditioning aggregate.
