Receiver drier, replacing: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Removing the drier filter

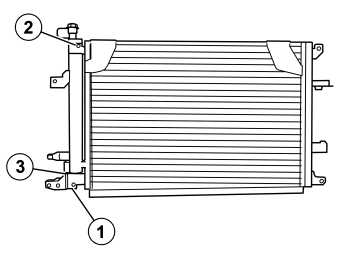

Fig 1: Identifying Drier Filter Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the drier filter screw on the underside (1) and the screw at the service valve (2).

Carefully bend up the drier filter from the connection on the condenser (3) using a slotted screwdriver.

Removing the drier filter

Fig 1: Identifying Drier Filter Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the drier filter screw on the underside (1) and the screw at the service valve (2).

Carefully bend up the drier filter from the connection on the condenser (3) using a slotted screwdriver.

Removing the dryer filter

Fig 1: Identifying Drier Filter Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw (1) on the bottom of the dryer filter and the screw at the service valve (2).

Use a slotted screwdriver to carefully bend the dryer filter up from the connection on the condenser (3).
