Installing The Test Equipment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

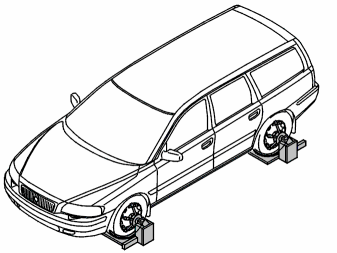

Fig 1: Identifying Test Equipment Set Up On Front And Rear Wheels

Courtesy of VOLVO CARS OF NORTH AMERICA.

Set up the test equipment on the front and rear wheels. Set up the test equipment according to the instructions.

Position the turntables under the front wheels. Use turntables which take up lateral movement

NOTE:

The car must stand level when the front wheels are on the turntables. This is to ensure that the correct values are obtained when checking the camber and caster.

Bounce the front and rear suspension heavily a few times when the car has sunk onto the turntables. This is so that the suspension resumes the normal setting.

HINT: The following order of work is recommended for best results

Step 1 Camber angle front check/adjust.
Step 2 Rear suspension angles check/adjust.
Step 3 Check/adjust front toe angle.
