Checking The Caster Angle, Front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

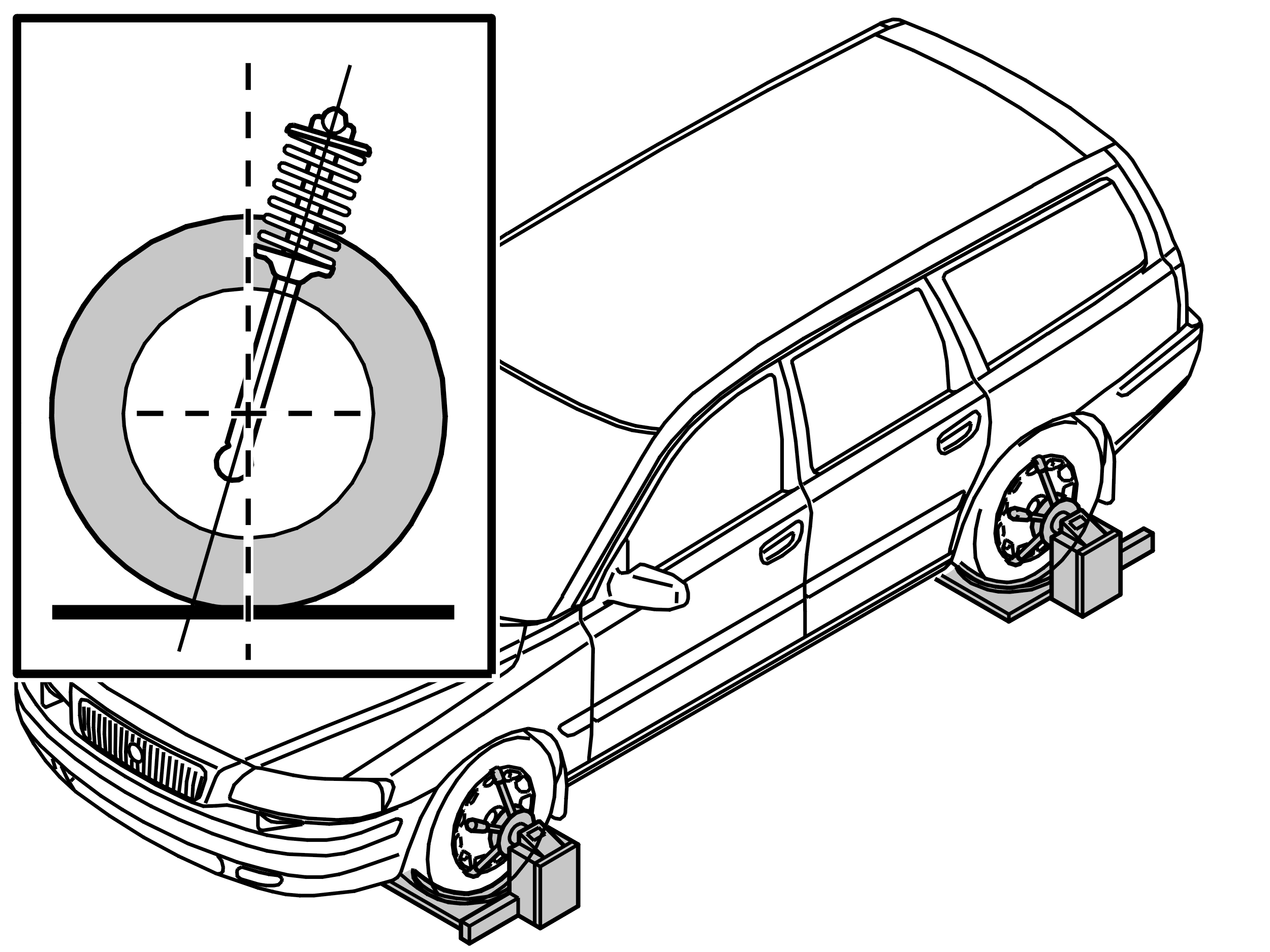

Fig 1: Checking Caster Angle
GLL106676Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the caster angle on both sides.

The correct value is 4.0° 1.0°. The caster angle must not vary by more than 0.25° between the left and right-hand sides.
