Check Play, Front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

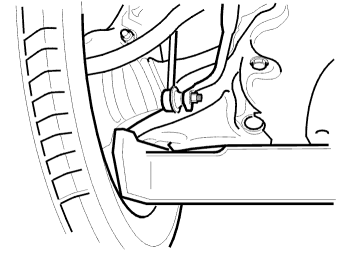

Fig 1: Checking Front Play

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the front end. Lift under the control arms as close to the ball joint as possible.

Check that there is no play in

the tie rods
the wheel bearings
the upper spring strut mounting
the ball joints or control arm bushings.

If there is play in any of the components above, this must be remedied before the wheel settings are checked/adjusted.
