Adjusting Front Toe Angle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

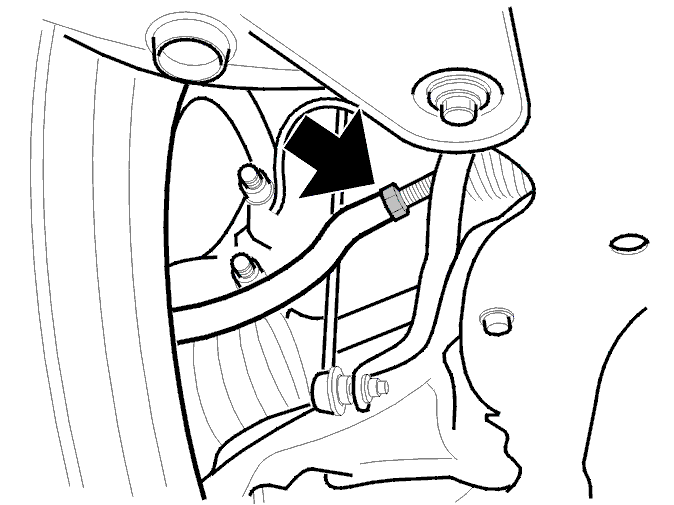

Fig 1: Identifying Lock Nut, Outer Steering Arm Inner To Steering Arm Inner

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust with the tie rods after loosening the lock nuts. Adjusting towards a positive value will give toe-in and towards a negative value toe-out. To obtain correct values on respective model variants, refer to Wheel camber, specifications .

NOTE:

The lengths of the tie rods must not vary between themselves by more than 2mm. Measure between the lock nut and the edge of thread.

Tighten the lock nut, outer steering arm inner to steering arm inner. See: Tightening torque .

Treat the strut threads using rustproofing agent after tightening.
