Preparations for installing the sealing ring
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Position the viscous coupling in a vise with soft jaws.
Sealing ring 42 mm (early version)
Cut away a piece of the sealing ring lip.

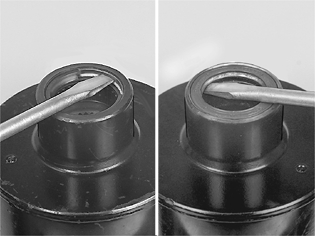

Use a heavy screwdriver with a broad tip.
Tap the screwdriver in to make a notch in the metal holder for the sealing ring. Then press hard and pry the seal out.
NOTE:
Do not insert the screwdriver between the sealing ring and needle bearing.
Sealing ring 47 mm (late version)
Position the screwdriver under the seal lip. Pry out the seal.
NOTE:
Check that no dirt gets into the needle bearing.
