Installing the sealing ring, continued
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

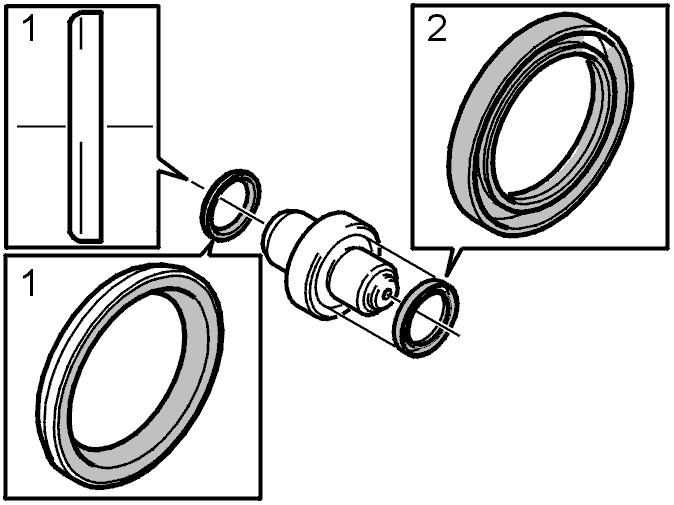

Sealing ring 42 mm (early version)
Install the seal (1) on the drift with the rounded edge on the metal holder facing outwards towards the viscous coupling.
Use the side without any holes in the end of the locating pin
Sealing ring 47 mm (late version)
Install the seal (2) on the drift with the seal spring towards the viscous coupling differential.
Tap in the seals until the drift meets the viscous coupling.
