Installing the O-ring

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

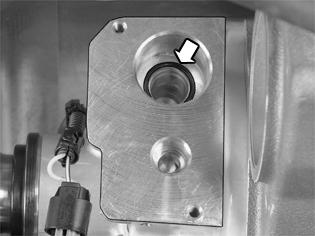

Fig 1: Active On Demand Coupling Control Module O-Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully check that the sealing surface on the control module and valve seats in the Active on Demand Coupling is clean. Ensure that there is no trace of cloth or paper.

Lubricate the new O-ring with oil, P/N 116 1641-4 (0.3 liters). Press the O-ring into place in its seat.
