Installing components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

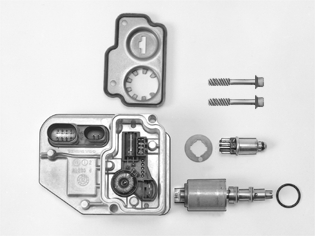

Fig 1: Active On Demand Coupling Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

control module
the sealing plate
washer
the throttle valve with O-rings
the temperature/pressure sensor with O-ring
the O-ring for the throttle valve seat
the screws.
