Removing the seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

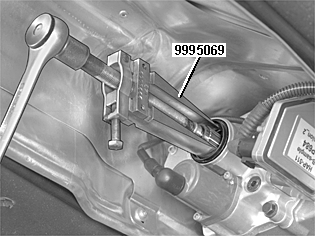

Fig 1: Removing Seal From Active On Demand Coupling Using Extractor 999 5069
GLL109928Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seal from the Active on Demand Coupling. Use extractor 9995069 .

Check thoroughly that no seal residue remains.
