Installing the seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

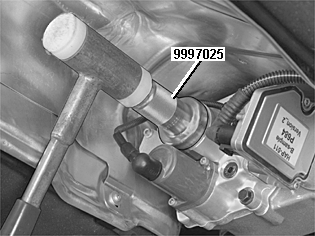

Fig 1: Installing Seal Using Drift 999 7025
GLL109927Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the new seal using oil for the Active on Demand Coupling, P/N 116 1641 (1 liter pack).

Use drift 9997025 for installation. Tap the seal into place until the surface of the drift is against the housing for Active on Demand Coupling.
