Installing the rear wheels. Tightening shock absorbers and lateral links

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

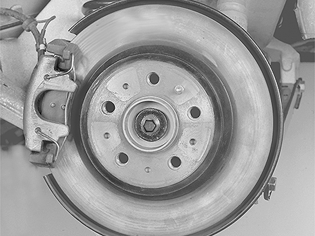

Fig 1: Drive Shaft And Wheel Hub

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the M10 screws for the drive shafts on both sides. Use new screws. Tighten
the rear wheels. See Installing wheels .

Position the car on a wheel track hoist.

Tighten the M12 screws for the shock absorbers and torque rods on both sides.

Install the protective covers over the shock absorber mounting.

NOTE: Check and adjust the rear wheel alignment if necessary. See Wheel alignment, checking/adjusting .
