Installing shock absorbers, lateral links and anti-roll bar links (both sides)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

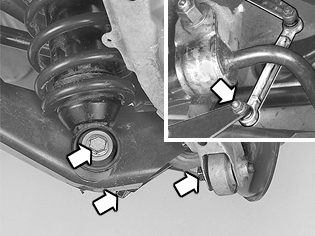

Fig 1: Identifying Shock Absorbers, Lateral Links & Anti-Roll Bar Links

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the control arm downwards when the shock absorber is being installed. Use a crow bar.

Install:

the shock absorbers on the control arms. Do not tighten the screw
the screw for the lateral link/wheel bearing housing. Do not tighten the screw
the link to the anti-roll bar on both sides. Use a new nut. Tighten.

CAUTION: For certain versions, remove the levers for the level sensor from the control arm(s).

NOTE: The level sensor may be installed on both the right and left side.
