Removing the flange from the bearing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

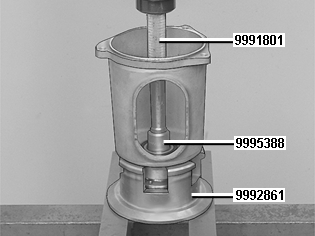

Fig 1: Identifying Special Tools (Socket, Punch & Shaft/Drift)
GLL109831Courtesy of VOLVO CARS OF NORTH AMERICA.

Support the viscous coupling housing on tool 9992861 . Press out the flange. Use drift 9995388 with shaft 9991801 or a suitable drift.
