Accessory Drive Belt: Replacing: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Removal steps in this procedure may contain installation details.

Remove the upper torque rod Upper torque rod

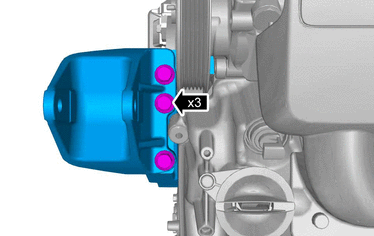

Fig 1: Identifying Bracket And Bolts
GLL153775Courtesy of VOLVO CARS OF NORTH AMERICA.

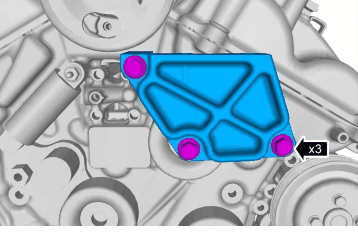

Fig 2: Identifying Bolts And Bracket
GLL153776Courtesy of VOLVO CARS OF NORTH AMERICA.

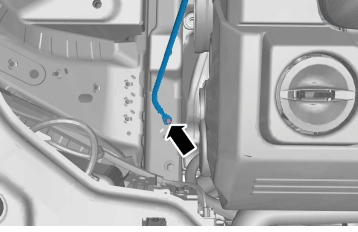

Fig 3: Identifying Ground Strap And Bolt
GLL153777Courtesy of VOLVO CARS OF NORTH AMERICA.

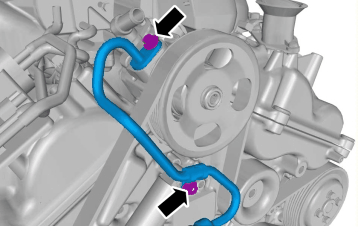

Fig 4: Identifying Fluid Line And Bolts
GLL153778Courtesy of VOLVO CARS OF NORTH AMERICA.

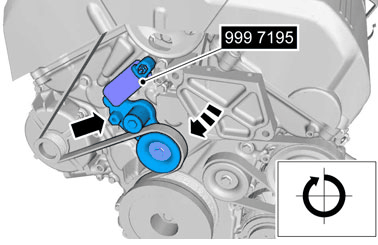

Fig 5: View Of Belt Tensioner And Special Tool 999 7195
GLL171992Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION:

Make sure not to exceed 230 Nm when releasing the belt tensioner.

9997195

Fig 6: Identifying Serpentine Belt And Components
GLL171993Courtesy of VOLVO CARS OF NORTH AMERICA.
