Location of components

Fig 1: Locating Central Electronic Module (CEM)

Courtesy of VOLVO CARS OF NORTH AMERICA.

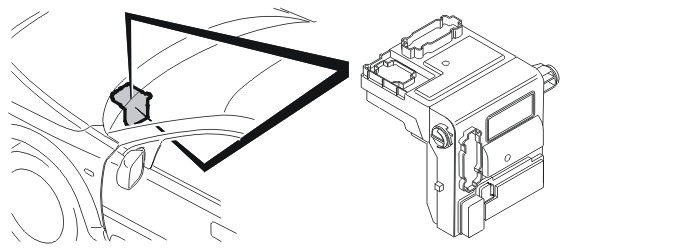

central electronic module (CEM)

1. Central electronic module (CEM).

Fig 2: Locating Exterior Lighting Components -- Front

Courtesy of VOLVO CARS OF NORTH AMERICA.

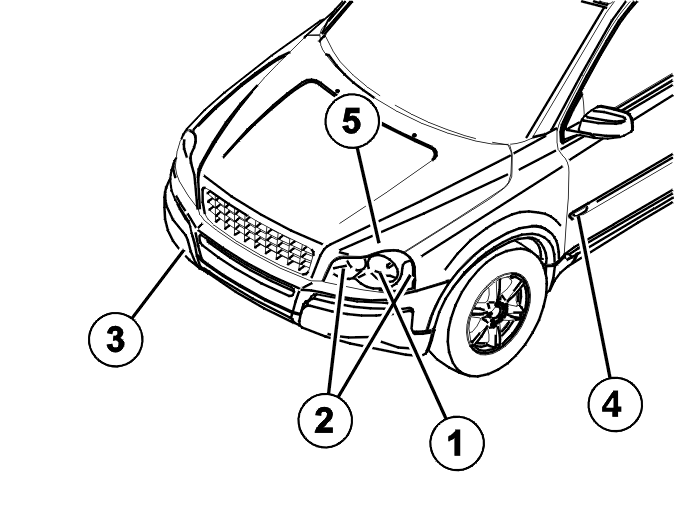

Lighting exterior, front

1. Headlamps
2. Front turn signal lamps
3. Front fog lamps
4. Front side turn signal flashers
5. Motor for headlamp beam height control.

Fig 3: Locating Exterior Lighting Components -- Rear

Courtesy of VOLVO CARS OF NORTH AMERICA.

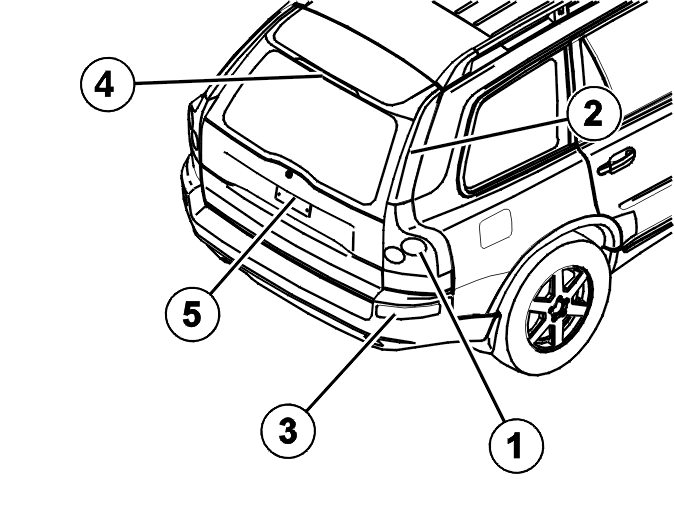

Lighting exterior, rear

1. Lower tail lamp
2. Upper tail lamp
3. Tail lamps in the bumper
4. High level stop lamp
5. License plate lighting.

Fig 4: Internal Lighting (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

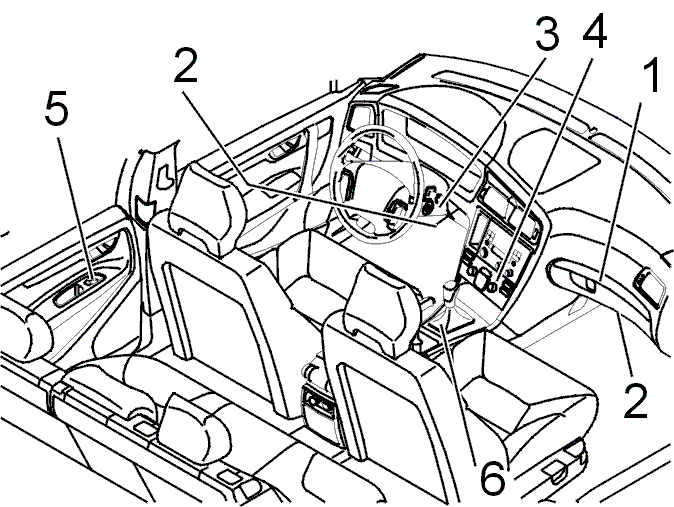

Inner lighting

1. Lighting glove compartment
2. Courtesy lighting
3. Ignition key lighting
4. Dashboard environment panel lighting
5. Door switch
6. Gear selector lighting.
Fig 5: Locating Interior Lighting Components (2 Of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.

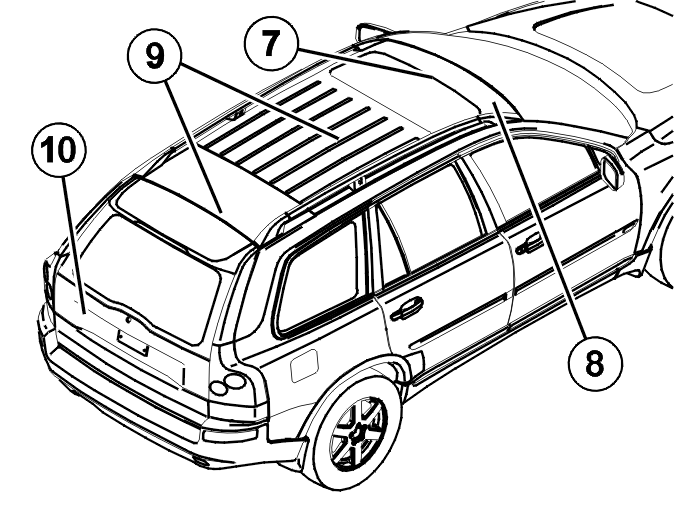

7. Interior lighting and the upper electronic module (UEM)
8. Vanity mirror lighting
9. Rear reading lamp
10. Cargo compartment lighting.

Fig 6: Locating Warning And Indicator Lamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

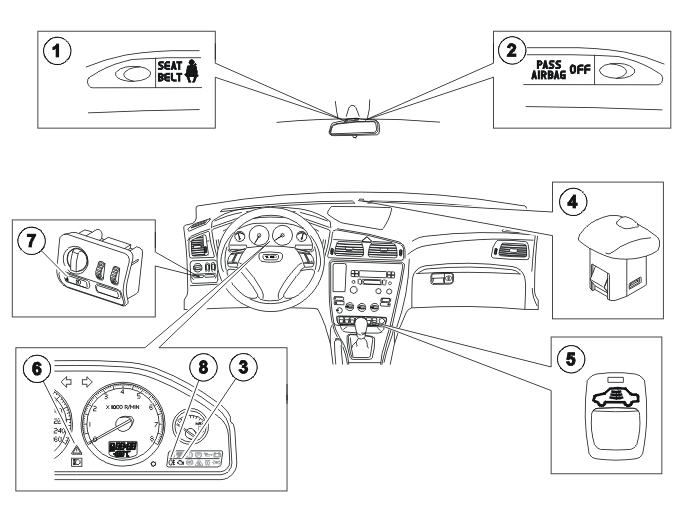

Warning and indicator lamps

1. Seat belt reminder
2. PAD lamp
3. MIL lamp
4. Alarm diode
5. Indication reduced alarm
6. Indicator lamp hazard warning signal flashers
7. Indicator lamp fog lamp front
8. Indicator lamp fog lamp rear.

Fig 7: Locating Sensors

Courtesy of VOLVO CARS OF NORTH AMERICA.

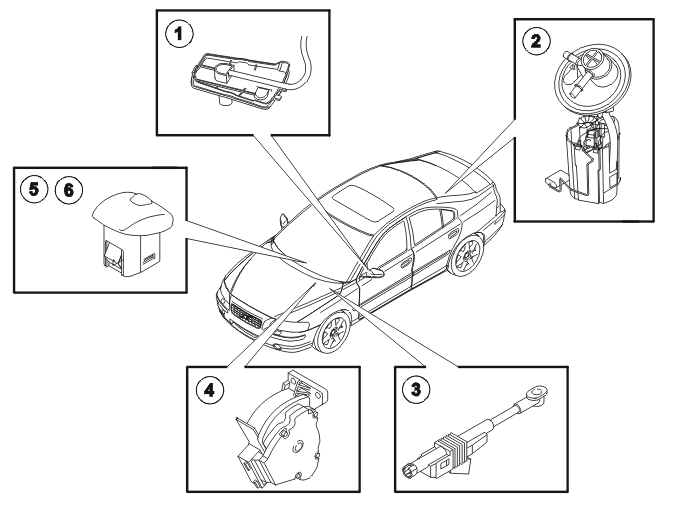

Sensors

1. Outside temperature
2. Fuel level (Gasoline/Diesel)
3. Clutch pedal
4. Accelerator pedal (AP) position sensor
5. Twilight sensor
6. Sun sensor.

Fig 8: Locating LIN Nodes

Courtesy of VOLVO CARS OF NORTH AMERICA.

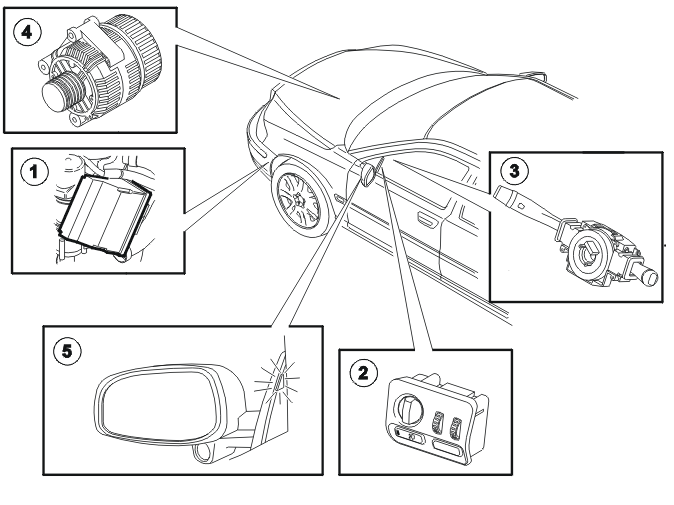

LIN nodes

1. Combustion preheater module (CPM)
2. Light switch module (LSM)
3. Steering wheel module (SWM)
4. Alternator control module (ACM)
5. Blind Spot Information System (BLIS).
