Installing the screws for the cable ducts and ground lead bracket

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

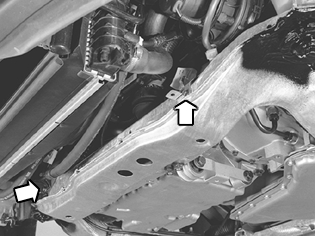

Fig 1: Locating Fuel Clips On Sub-Frame
GLL108740Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten to 10 Nm  .

NOTE:

Vehicles with parking heaters: Install the heater in the bracket. Tighten the nuts. Tighten to 25 Nm.

Reinstall the fuel line in the clips on the sub-frame.
