Cleaning and checking

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

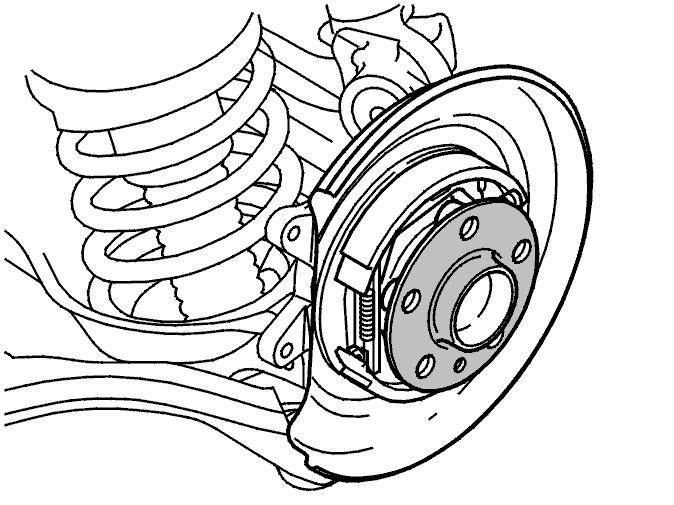

Fig 1: Brake Pads
GLL104437Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: Cleaning is important to prevent lateral run out at the brake disc.

Clean the hub flange before installing the new brake disc.

Check the hub. If it is damaged, measure the lateral run out. See Rear wheel hub, measuring lateral runout .

Check the brake pads. See: Brake pads rear, replacing .
