Replacing the parking brake lever
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Remove the parking brake lever

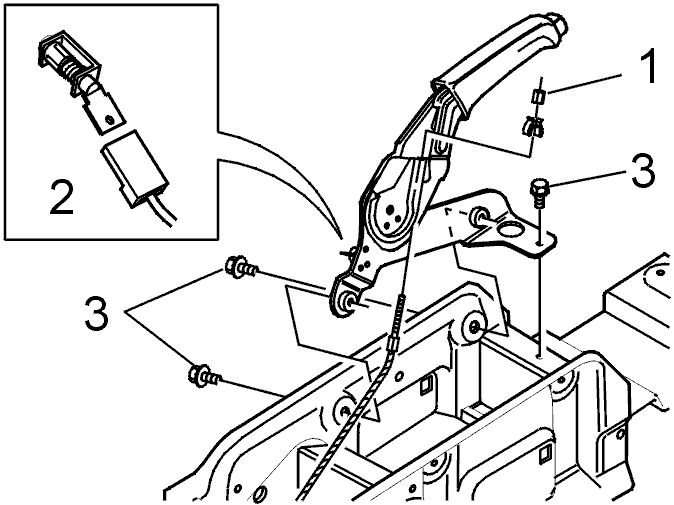

Remove the nut (1) for adjusting the parking brake. Pull out the cable.
Disconnect the connector (2) for the warning lamp.
Remove the three screws (3) holding the bracket for the parking brake lever. Remove the lever.
Install the parking brake lever
Install:
- the new bracket with parking brake lever in its mountings. Tighten to 25 Nm
- the connector for the warning lamp
- the cable in the parking brake lever
- the adjuster nut.
