Cleaning and inspection

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

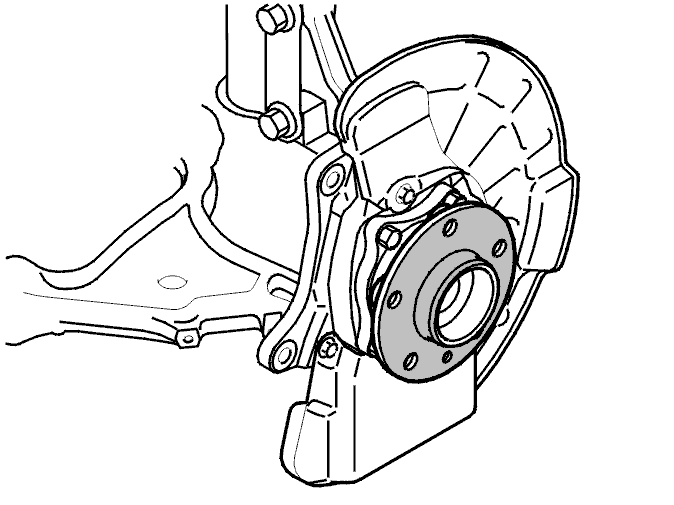

Fig 1: Hub Flange
GLL104436Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: Cleaning is important to prevent lateral runout at the brake disc.

Clean the hub flange before installing the new brake disc.

Check the hub. If it is damaged, measure the lateral runout. See Front wheel hub, measuring lateral runout .
