Press the piston into the brake caliper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

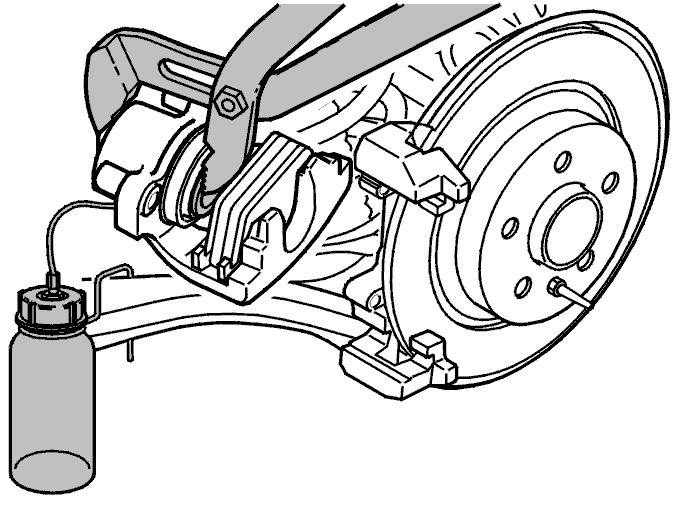

Fig 1: Identifying Piston Pressed Into Caliper Using Pipe Wrench
GLL104545Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the brake pad from the piston.

Press the piston into the caliper using the pipe wrench.

Reinstall the brake pad on the piston.

Remove the protective cap from the bleed nipple. Connect the collecting bottle hose.
