Changing the brake fluid, front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

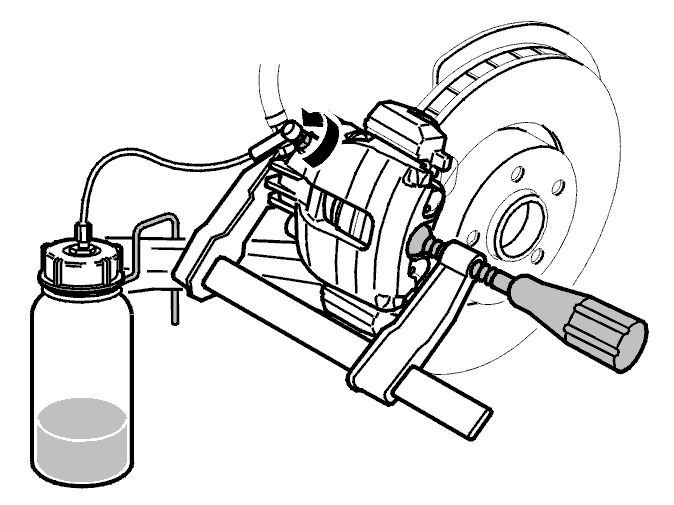

Fig 1: Changing The Brake Fluid, Front
GLL104529Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the nipple, approximately one turn.

Push the brake caliper piston to bottom of the caliper using a G clamp. Leave the G-clamp in pushed in position.

Pressurize the braking system with the bleeding unit.

Leave the bleed nipple open until the new brake fluid enters.

Close the nipple. Remove the hose.

Install the protective cap.

Remove the G-clamp from the brake caliper.
