Preparations for changing, front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

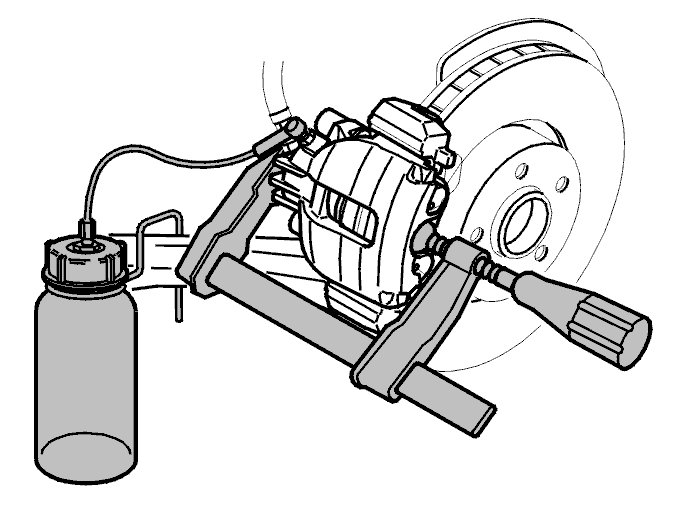

Fig 1: Collecting Bottle, Hose And G-Clamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Switch off the ignition.

Clean around the brake fluid reservoir filler cap.

Raise the car.

Take out:

a collecting bottle and hose to collect brake fluid in
a G-clamp.

Remove the protective cap from the bleed nipple.

Connect the collecting bottle hose.
