Changing the brake fluid, front
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Open the bleed nipple, approximately one turn.

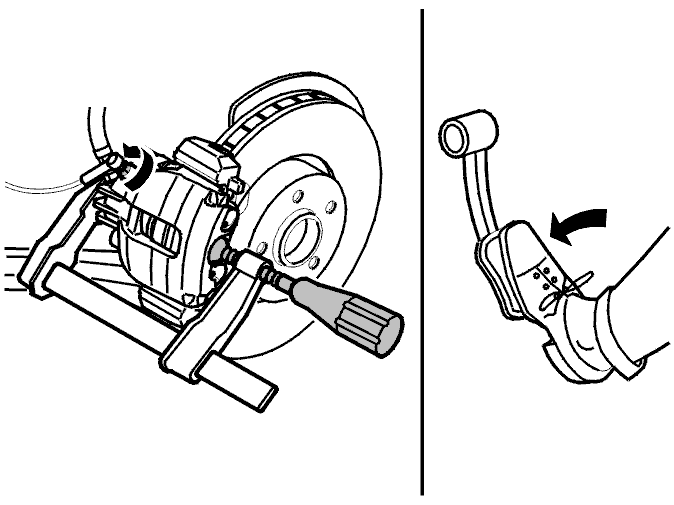

Press in the brake caliper piston to the bottom of the caliper. Use G-clamp as shown. Leave the G-clamp in pushed in position.
Press down the brake pedal to the limit position. Keep it pressed down for approximately 2 seconds before releasing it. Repeat this until new brake fluid enters.
Close the bleed nipple when the brake pedal is fully depressed.
Remove:
- the hose. Install the protective cap
- the G-clamp from the brake caliper.
Finishing work, front
See Finishing work .
