Wheel Nuts Anti-Theft Protected: Welding

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

See information on welding, general. Welding, general

Removal

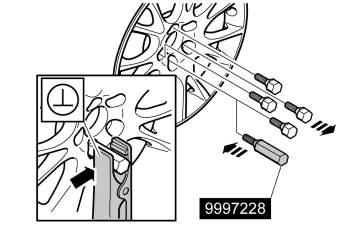

Fig 1: Removing Wheel Nuts/Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

See 9997228

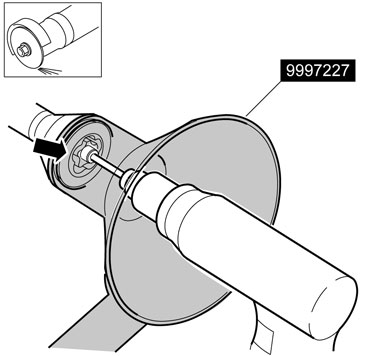

Fig 2: Identifying Weld Protection Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

See 9997227

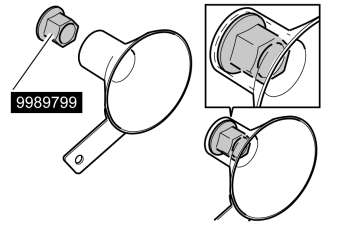

Fig 3: Placing Weld Nut In Welding Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

See 9989799

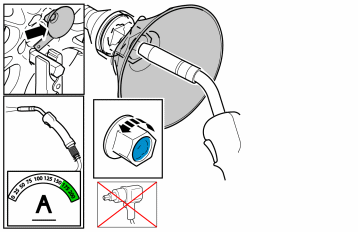

Fig 4: Pressing Welding Protection With Weld Nut Into Broken Wheel Nut/Lock Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.
