Tire Pressure Sensor, Replacement: Finishing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

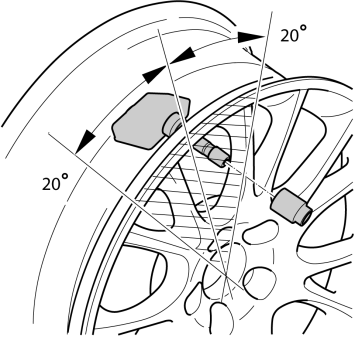

Fig 1: Removing/Installing Sensor
GLL164081Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION:

Do not use tools within the marked area.

CAUTION:

Always start outside the marked area and continue in the direction from the valve.

Fit the tire and balance the wheel.

Install the wheel. See: Installing wheels .

After replacing sensors, the control module does not need programming. The control module contacts the sensor itself after a few minutes driving. LF initiator can be used.
