Installing The Spring Strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

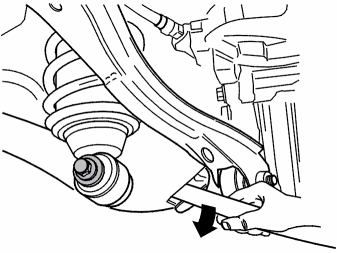

Fig 1: Installing Spring Strut On Lower Control Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the spring strut on the lower control arm. Use a large jimmy bar to bend the control arm down and align the spring strut against the control arm
the spring strut/lower control arm screw loosely.
Use a new screw. The screw will be tightened later.
