Installing The Brake Disc And Brake Caliper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

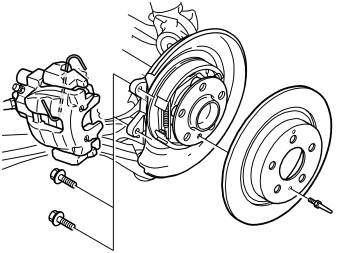

Fig 1: Identifying Brake Disc, Brake Caliper & Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the brake disc
the brake disc locating pin/screw (M6). Tighten. See Tightening torque .
the brake caliper
the brake caliper mounting screws.
Use new screws. Tighten. See Tightening torque .
the wheel sensor cable to the retainer on the brake hose.
