Front Wheel Hub Steel: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Removing brake calipers

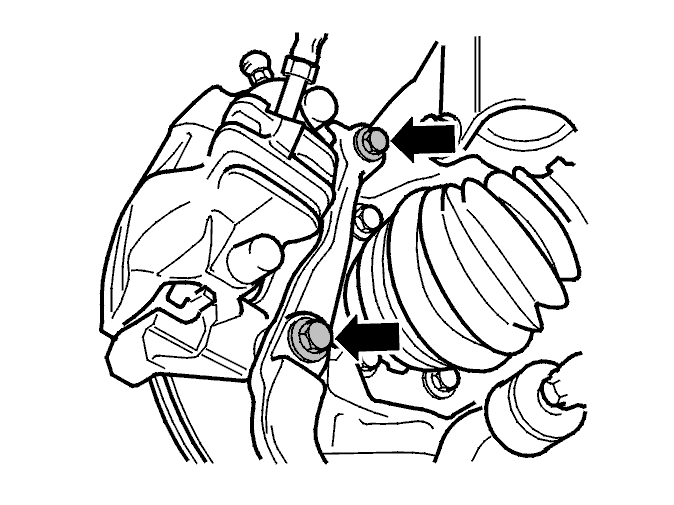

Fig 1: Brake Caliper And Limiter Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the wheel
the brake caliper and limiter screws.
Hang the caliper up using a piece of wire.

Fig 2: Identifying Drive Shaft Screw Removal Using A Screwdriver As A Counter Hold On Brake Disc

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the drive shaft screw. Use a screwdriver as a counterhold on the brake disc
the locating pin holding the brake disc
the brake disc.

Remove the end of the drive shaft

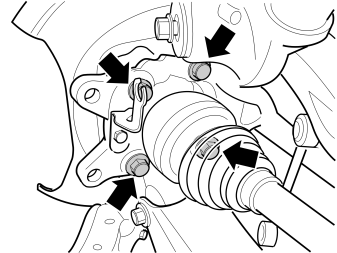

Fig 3: Hub Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the end of the drive shaft in the hub by knocking the drive shaft into the hub approximately 10-15 mm . Use a rubber or copper mallet.

Press the end of the drive shaft into the hub 10-20 mm .

Remove the 4 screws for the hub.
