Installing the rear wheel hub

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

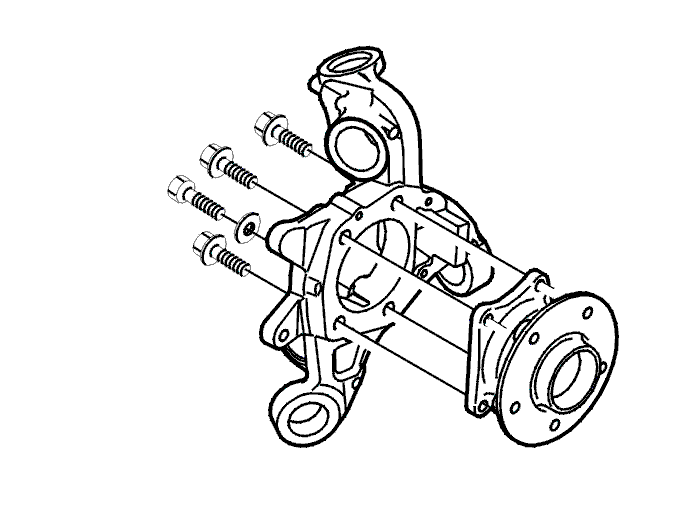

Fig 1: Identifying Rear Wheel Hub And Screws Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

(The illustration displays the rear wheel hub schematically)

NOTE:

Ensure that the hub and the wheel spindle mating surfaces are clean.

Install

the rear wheel hub. Use new screws and torque wrench with ring wrench kit. Tighten crosswise. Tighten to 20 Nm .
Then tighten to 65 Nm .

Finally angle-tighten 60° . Use bevel protractor 9512050 .

NOTE:

The screw without a flange has a washer which is included in the kit. Position the screw in the rear lower screw hole.

Fig 2: Brake Disc And Locating Pin

Courtesy of VOLVO CARS OF NORTH AMERICA.

the brake disc
the locating pin for the brake disc. Tighten the locating pin. Tighten to 10 Nm
the brake caliper. Use new screws. Tighten to 60 Nm
the ABS sensor.
NOTE:
Ensure that the sensor seat in the wheel spindle is completely clean.

Clean the ABS sensor with a soft brush. Tighten the sensor. Tighten to 10 Nm .
the ABS-cable holder
the wheel. See Installing wheels .
