Finishing work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

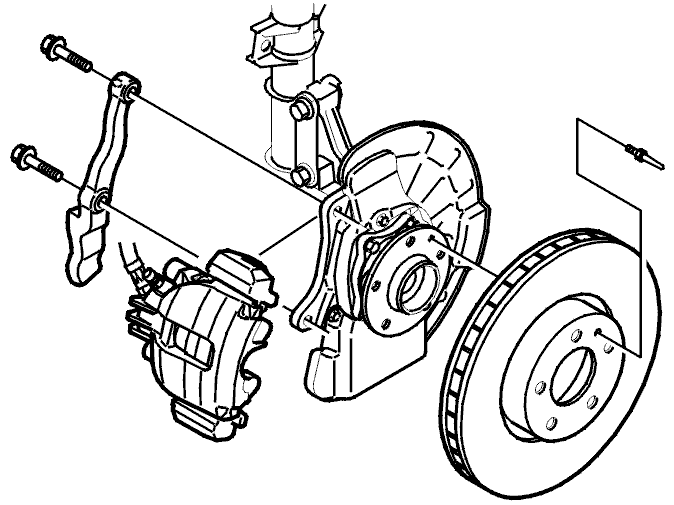

Fig 1: Brake Disc, Caliper, Holder, And Locating Pin

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the test equipment

Install:

the brake disc. Tighten the locating pin. Tighten to 8 Nm
the brake caliper and the caliper holder. Tighten to 100 Nm .

NOTE: Use new mounting screws.

Install the wheel

See Installing wheels
