Brake disc front, calibrating: Preparations

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

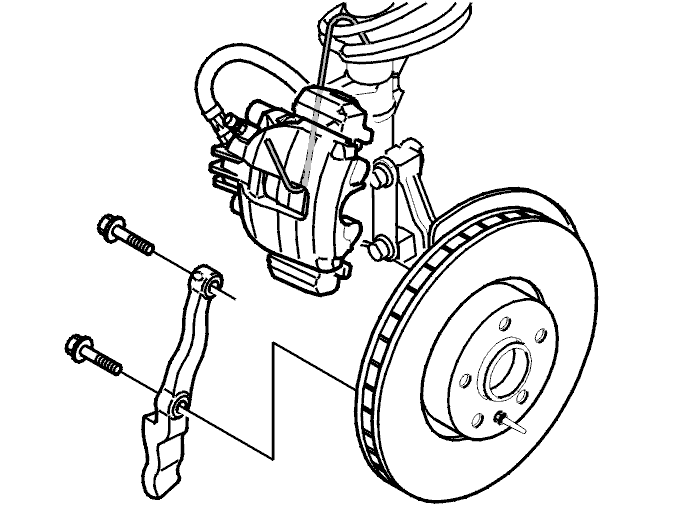

Fig 1: Brake Caliper Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the wheel
the mounting screws for the brake caliper holder.

Suspend the brake caliper in the spring with a steel wire.
