Cylinder Block
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

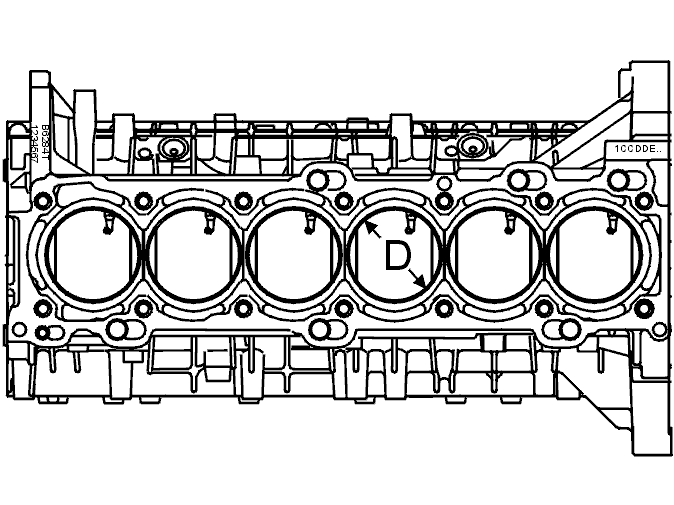

Bore (D) in mm
| Standard | B6284T | B6294S |
| C-marked 1 | 81.00-81.01 | 83.00-83.01 |
| D-marked 1 | 81.01-81.02 | 83.01-83.02 |
| E-marked 1 | 81.02-81.03 | 83.02-83.03 |
1 The bore classification is stamped on top of the engine block.
Example: 1CCDDEE Is read as follows: Cylinder 1=C; Cylinder 2=C; Cylinder 3=D; Cylinder 4=D; Cylinder 5 =E; Cylinder 6=E.
