Cylinder Block

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

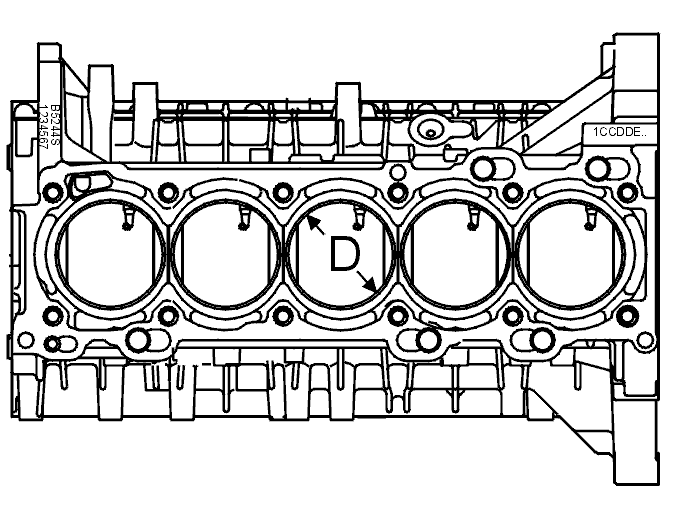

Fig 1: Cylinder Block
GLL102769Courtesy of VOLVO CARS OF NORTH AMERICA.
Bore (D) in mm

Standard  B5204Tx  B5234Tx  B5244Tx  B5254Tx
C-marked 1 81.000-81.010 81.000-81.010 83.000-83.010 83.000-83.010
D-marked 1 81.010-81.020 81.010-81.020 83.010-83.020 83.010-83.020
E-marked 1 81.020-81.030 81.020-81.030 83.020-83.030 83.020-83.030

1 The bore classification is stamped on top of the engine block. For example: 1CCDDE is read as cyl 1=C, cyl 2=C, cyl 3=D, cyl 4=D, cyl 5=E.
