Removing Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

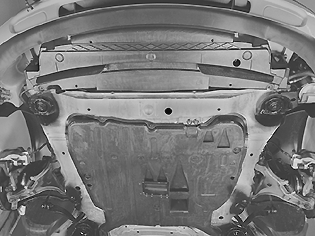

Fig 1: Identifying Splash Guard Under The Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the car.

Remove

the left and right front wheels
the splash guard under the radiator
the splash guard under the engine.

Fig 1: Expansion Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

Expose the wiring for the front heated oxygen sensor (HO2S).

Disconnect the connector for the level sensor in the expansion tank.

Remove

the heat deflector plate above the turbocharger (TC)
the hoses for the heater unit at the terminal in the firewall
the bleed hose for the radiator at the expansion tank
the ABS line and clips and the power steering hose.

Lift up the power steering fluid reservoir and the expansion tank. Place them on top of engine.
