Installing The Screw In The Rear Engine Pad

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

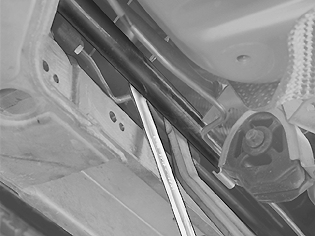

Fig 1: Anti-Roll Bar Mounting Lifted Using Jimmy Bar

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift the anti-roll bar mounting using a jimmy bar. This makes it easier to insert the tool and the M10 screw.
