Installing The Pipe Junction

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

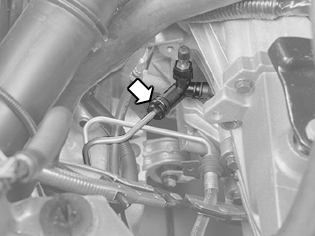

Fig 1: Brake Fluid Reservoir And Clutch Master Cylinder Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the clutch pipe on the junction. Use a new seal . Ensure that the clip locates in its channel.

Remove the hose clip.

Bleed the clutch

Use only Volvo Genuine parts brake fluid DOT 4+.
